Cobra

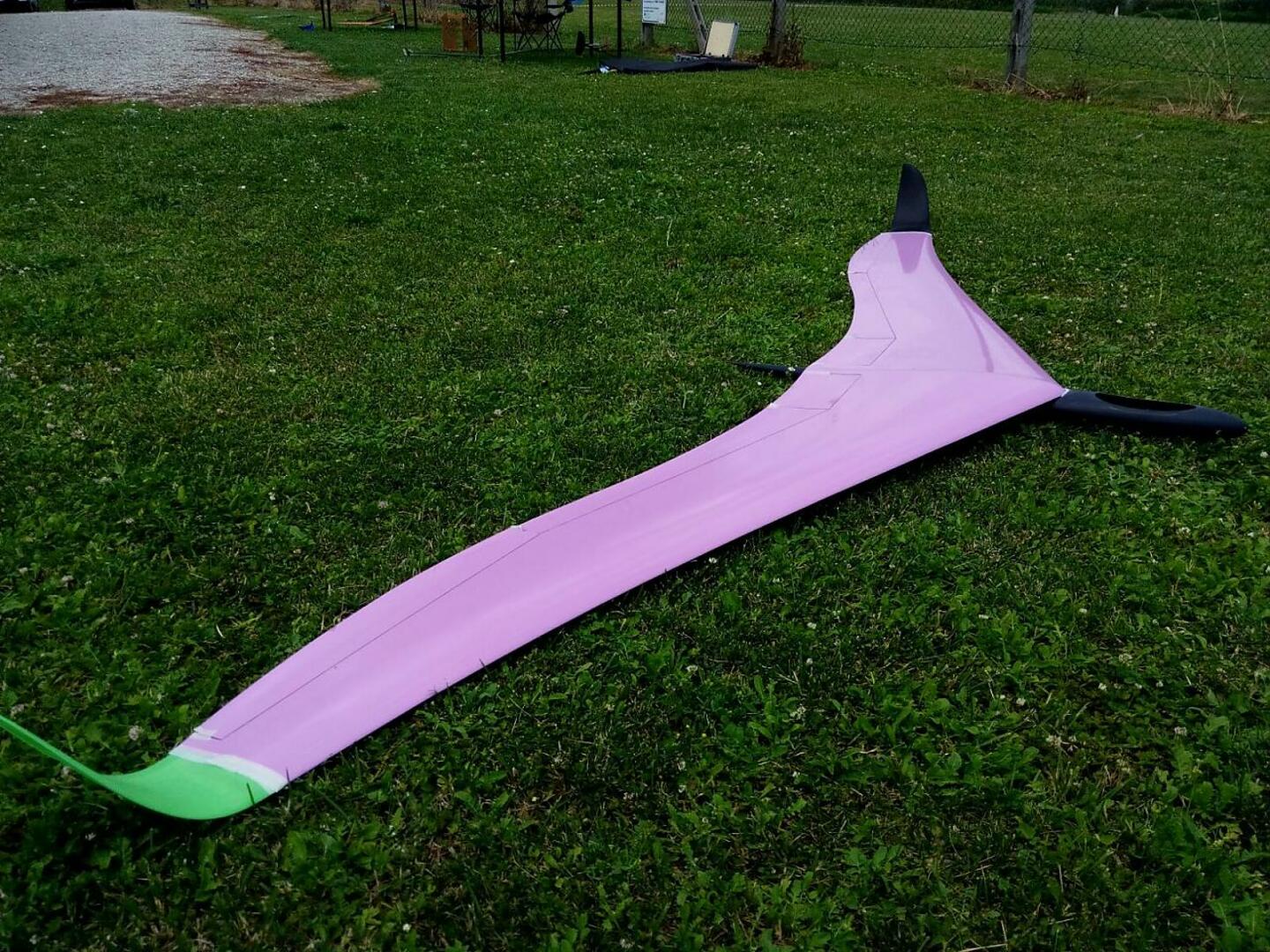

The Cobra is a full composite flying wing of 3.200 mm co-designed and developed together with Ing. Giuseppe Ghisleri, one of the most capable Italian RC designer, model builder and pilot.

The fuselage can also host an electric engine up to 50 mm diameter.



Technical Data

   Unit of Measure Value
Wing span: mm  3.200
Wing area: dm2 86
Fusolage lenght: mm 1.030
Weight (OD, glider config.): ∼kg 4,0
Weight (OD, extralight tech., glider config.): ∼kg 3,6
Wing load (OD, extralight tech., glider config.): g/dm2 42
Wing airfoil: n/a Mod. SN

Technical Setup

Seggested Servos Setup  Brand Type Max Thickness
elevator/ailerons: KST X10  10 mm
ailerons: KST  X10  10 mm
flaps: KST  MS-589MG  15 mm



Suggested Electir engine
Battery cell:
Battery capacity:
Controller:
Motor:
FES:
Propeller:
