Swift 3.2
Semi-scale version of the famous Swift S-1 aerobatic sailplane, developed in the early 1990s from the Polish SZD-21 Kobuz.
Since the beginning of ’90, many RC glider manufacturers have been presenting their own version of this outperforming glider. As per the 2.5 meter wingspan version, Glider_it has interpreted this project together with its engineers and pilots. The result is a pure acrobatic machine equipped with an airfoil thickness equal to 8,7% capable to guarantee an outstanding maximum speed together as well as a very high ratio of energy restitution.

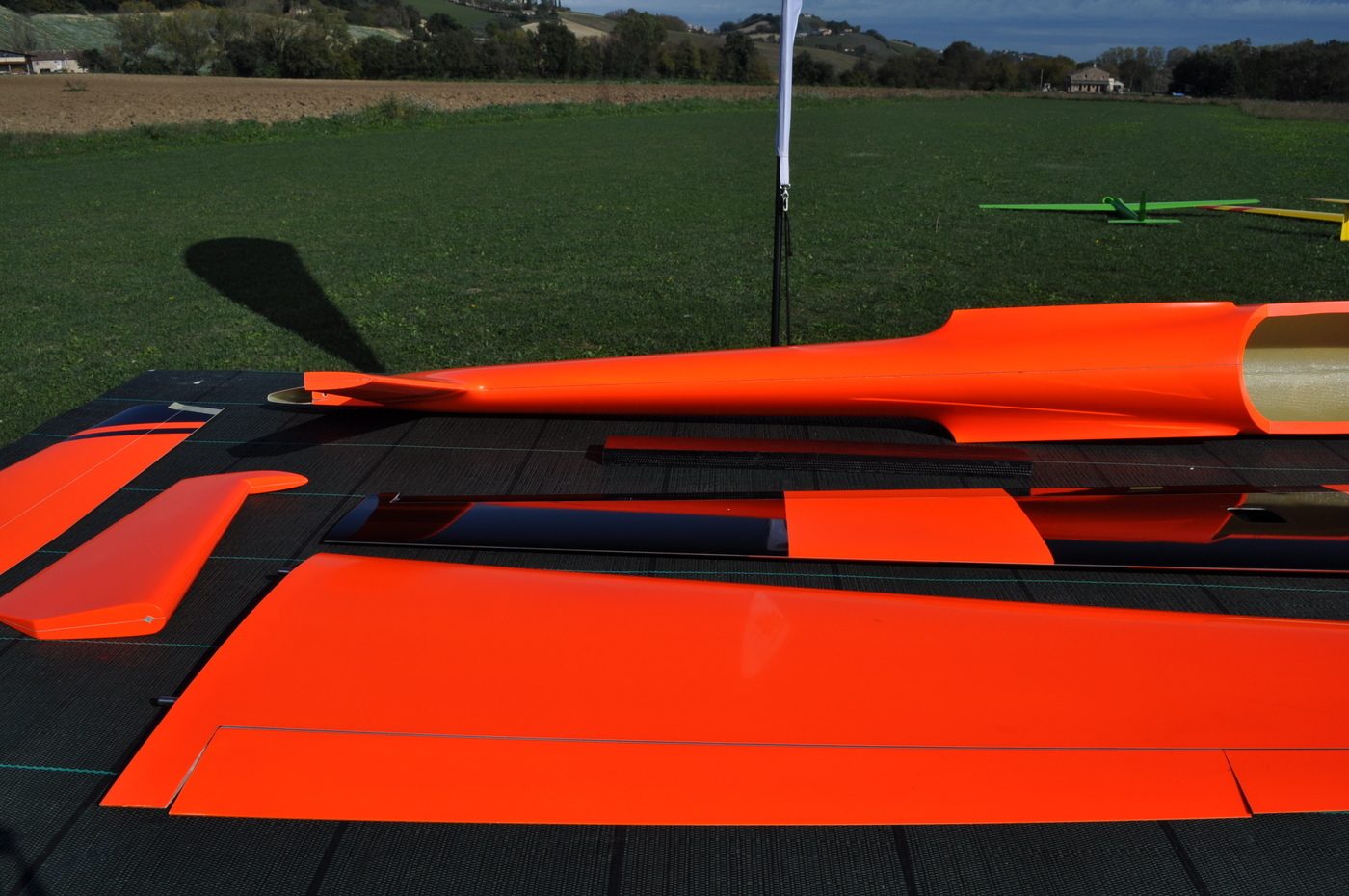

Furthermore, for the 3.2 wingspan version, we have added some more technical features like a carbon wing joiner 40x20mm, ailerons and flaps hinged to the lower surface, closed trailing edges through a fiberglass lip and finally a 2.4ghz “friendly” fuselage (glass on the nose, carbon on the back).
Technical Data
Unit of Measure | Value | |
---|---|---|
Wing span: | mm | 3.140 |
Wing area: | dm2 | 68 |
Fusolage lenght: | mm | 1.740 |
Weight (OD, glider config.): | ∼kg | 5,5 |
Weight (OD, extralight tech., glider config.): | ∼kg | 5,0 |
Wing load (OD, extralight tech., glider config.): | g/dm2 | 73 |
Wing airfoil: | n/a | XHN 1054 |
Technical Setup
Suggested servos setup | Brand | Type | Max Thickness |
---|---|---|---|
elevator: | KST | BLS651 | 20 mm |
rudder: | KST | BLS651 | 20 mm |
ailerons: | KST | X10 | 10 mm |
flaps: | KST | X10 | 10 mm |
Suggested engine setup | ||
---|---|---|
Battery cell: | Lipo | 5S |
Battery capacity: | mAh | 5.000 |
Controller: | Castle Edge lite, Ah | 100 |
Motor: | Leomotion | L4031-2550 finned 6,7:1 |
FES: | LeoFes | quick link 6 mm shaft |
Propeller: | Leomotion | Carbon propeller 18x13 |
